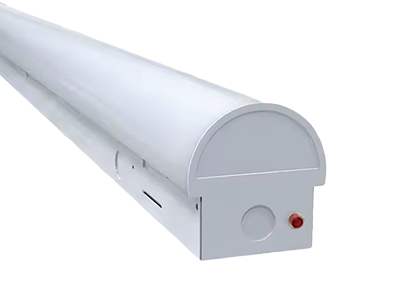

4' NARROW 3500K

LED STRIP LIGHT + SENSOR & EM BATT

PF-NARROW-4/40/YDM/835/SR/EM

DESCRIPTION

The Narrow series is a LED linear fixture that fits into most compact of widths. It offers fast surface mounting as well as row mounting. Thermal expansion and contraction of the lens is not an issue. Dimmable and suitable for damp locations. Bi-level motion sensor included and battery backup included.

ADDITIONAL INFORMATION

LED L70 LIFE: > 100,000 hours

UL NUMBERS: E524483 UL – 1598

DLC PRODUCT 1D: S-86WNJQ

OPTIONAL ACCESSORIES: Surface / capable-suspended / v-hooks & chain suspended mountings kits, row connector, right angle connection kit, wire guards with square or arc profiles.

BATTERY INFORMATION

  • EM RUNTIME – >90 Minutes
  • EM RECHARGE – 24 Hours

SPECIFICATIONS

  • SKU: PF-NARROW-4/40/YDM/835/SR/EM
  • FINISH – White
  • OTHER FINISHES – Custom
  • COLLECTION – Narrow
  • MATERIAL – Stamped Sheet Metal
  • DIFFUSER – Polycarbonate

PRIMARY LIGHTING

  • LIGHT SOURCE – 40W LED
  • LUMENS – 5280
  • VOLTAGE – 120 – 277V
  • COLOR TEMP 3500K
  • CRI – 80

DIMENSIONS

  • LENGTH – 47.3″
  • WIDTH – 1.9″
  • HEIGHT – 2.5″
  • BACKPLATE – N/A
  • WEIGHT – 7.1 LBS

DOWNLOAD SPEC SHEET HERE
