2' | 3' | 4' | 8' LED LINEAR
SURFACE MOUNT LIGHTS
DESCRIPTION

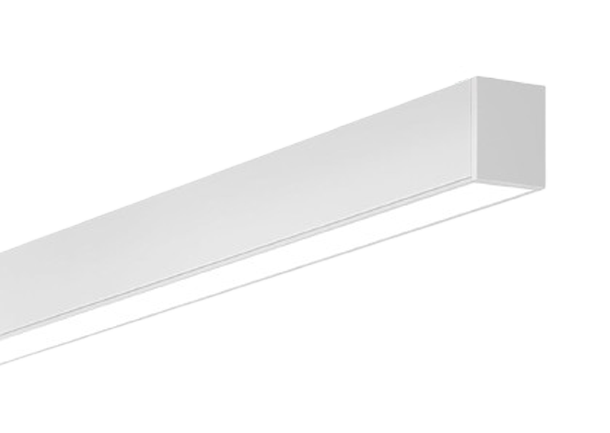

Prottofos LED Linear Surface Mount Lights offer a slim design, selectable wattage/CCT, and 100% down light distribution making it perfect for corridors, classrooms, and high traffic areas. Available in 2′, 3’, 4’, and 8′ lengths for individual or continuous runs, with custom shapes using Line, L, X, T, Y, V, Z joiners.
ORDERING INFORMATION
- 2’ SKU: PF-PL-2432-10W-CCT-WH-DN
- 3’ SKU: PF-PL-3532-15W-CCT-WH-DN
- 4’ SKU: PF-PL-4732-20W-CCT-WH-DN
- 8’ SKU: PF-PL-9532-40W-CCT-WH-DN
SPECIFICATIONS
- SKU: See Ordering Information
- FINISH: White
- OTHER FINISHES: Black
- COLLECTION: N/A
- MATERIAL: Aluminum
- DIFFUSER: Polycarbonate Frosted
PRIMARY LIGHTING
- LIGHT SOURCE: See Wattage Table
- LUMENS: 1000 LM/LF
- # OF BULBS: Integrated
- VOLTAGE: 120V – 277V
- COLOR TEMPS: 30K | 35K | 40K
- CRI: 80+ ( 90+ Optional)
WATTAGE INFORMATION
|
LENGHT
|
WATTAGE
|
||
|---|---|---|---|
|
2'
|
20W
|
15W
|
10W
|
|
3'
|
30W
|
23W
|
15W
|
|
4'
|
40W
|
30W
|
20W
|
|
8'
|
80W
|
60W
|
40W
|
DIMMENSIONS
|
MODEL
|
||||
|---|---|---|---|---|
|
LENGHT
|
2'
|
3'
|
4'
|
8'
|
|
WIDTH
|
3.74"
|
3.74"
|
3.74"
|
3.74"
|
|
HEIGHT
|
3.74"
|
3.74"
|
3.74"
|
3.74"
|
|
WEIGHT
|
N/A
|
N/A
|
N/A
|
N/A
|
