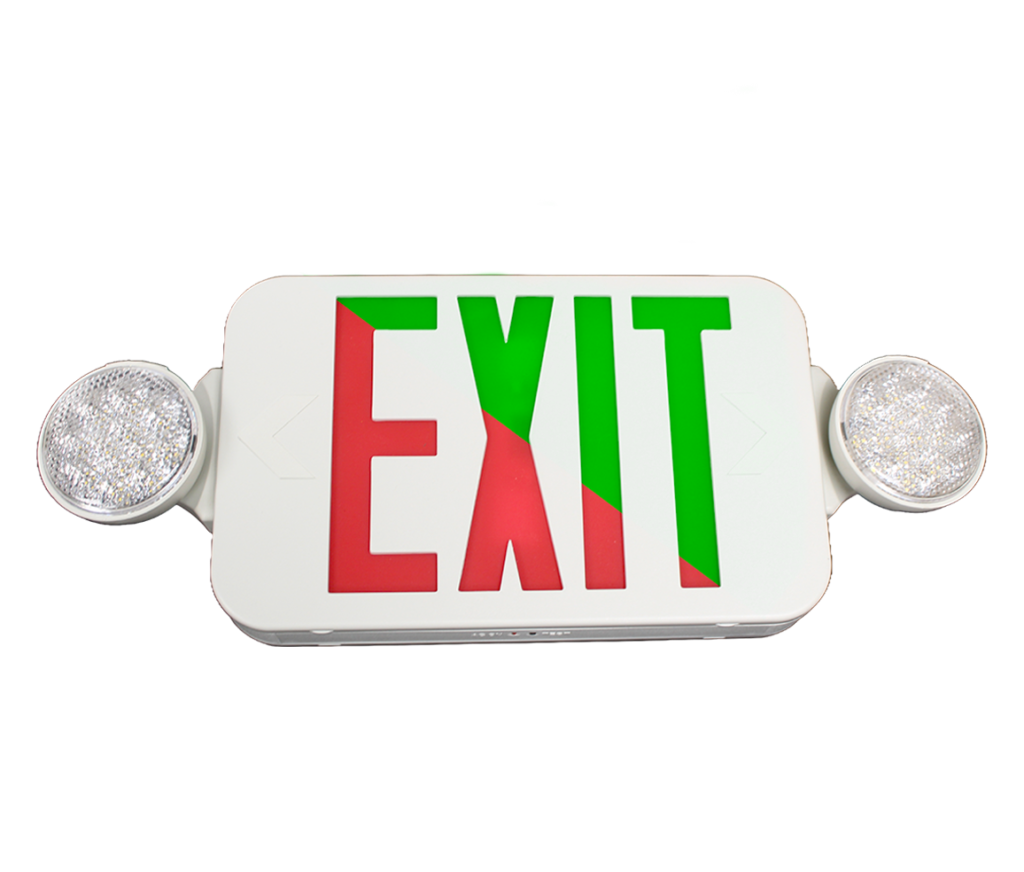

COMBO LED EXIT SIGN
PF-EM-187-CBD-WHRD
DESCRIPTION
This exit sign is made with injection-molded thermoplastic ABS housing with a 5VA flame rating. Innovation, easy installation in minutes. Optional red or green letters. Single or double face with universal J-box mounting pattern. 2 x 12 SMD 2835 LED lamp heads for emergency mode. Rated for indoor / damp locations.
SPECIFICATIONS
- SKU: PF-EM-187-CBD-WHRD
- FINISH: White | Red Letters
- OTHER FINISHES: White | Green Letters
- COLLECTION: Emergency
- MATERIAL: ABS
- DIFFUSER: N/A
PRIMARY LIGHTING
- LIGHT SOURCE: (2) 2.4W LED
- LUMENS: Output 200 LM
- # OF BULBS: Integrated
- VOLTAGE: 120V – 277V
- COLOR TEMP: N/A
- CRI: N/A
DIMENSIONS
- WIDTH: 18.06″
- HEIGHT: 7.17″
- WEIGHT: 2.0 LBS
- EXTENSION: 2.82″
- BACKPLATE: N/A
BATTERY INFORMATION
Built-in 3.6V 700mAh Nickel Cadmium battery. Test switch and charge indicator included.
- EM RUNTIME: >90 Minutes
- EM RECHARGE: 24 Hours
